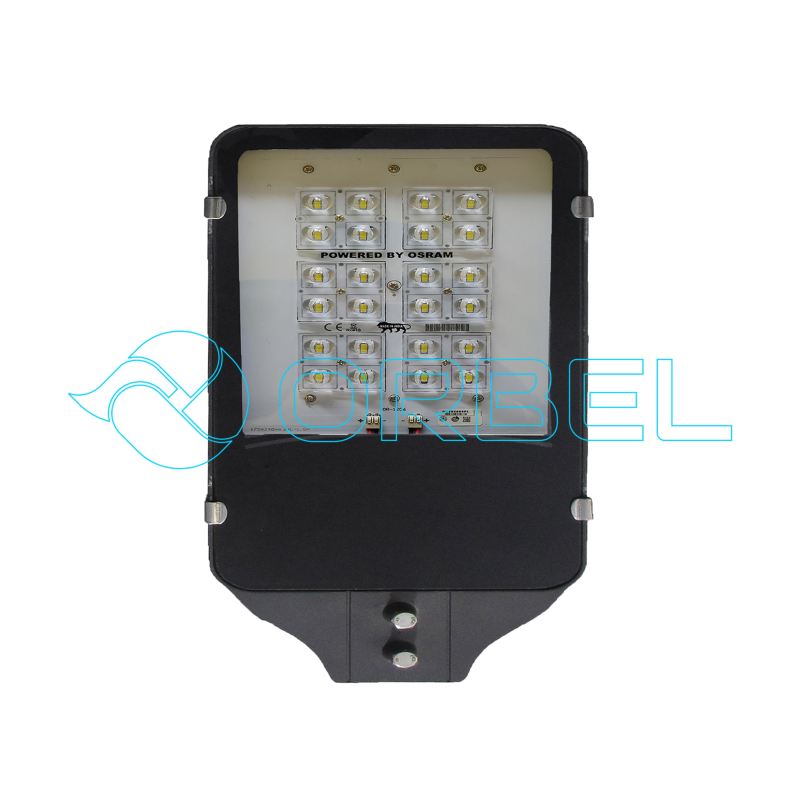

MAXGLOW SERIES
WATTAGE: 100W
Powder coated aluminium die-cast housing (ADC12) with elegantly designed heat sink for efficient thermal management, sturdiness & excellent corrosion resistant.
| TECHNICAL SPECIFICATIONS | |
| Input Voltage | 85-310v AC – 50Hz |
| Lumens Efficacy of LED | 140 Lumens per Watt |
| Surge Protection | Up to 6Kv |
| Power Factor | 0.95 |
| Ingress Protection | IP65 |
| Operating Temperature | -20 to 60 Degree Centigrade |
| 440v Protection | Yes |
| Over Voltage Protection | Yes |
| Under Voltage Protection | Yes |
| Auto Cut-Off | Yes |
LED DRIVER SPECIFICATION
- Potted Waterproof Driver IP65
- Lower THD < 10%
- Open Circuit Protection
- Over Voltage Protection
- Inbuilt 6Kv Surge Voltage Protection (Optional up to 10Kv to 20Kv possible with additional External or Built in SPD)
FEATURES & BENEFITS
- Delivers excellent illumination & comfort
- Long life & Photo biologically safe LED’s
- High performance electronic driver ensures zero maintenance
- No harmful UV & IR radiations
- Environment friendly as it does not contain mercury
- Instant light with low running temperatures
APPLICATIONS
Roads | Highways | Hi-Mast Tower | Societies | Industries | Area Outdoor Lighting | Warehouse
